SettingsMMS Class Reference

Global settings for the Method of manufactured solutions (mms/) numerical experiment. More...

#include <settings.hpp>

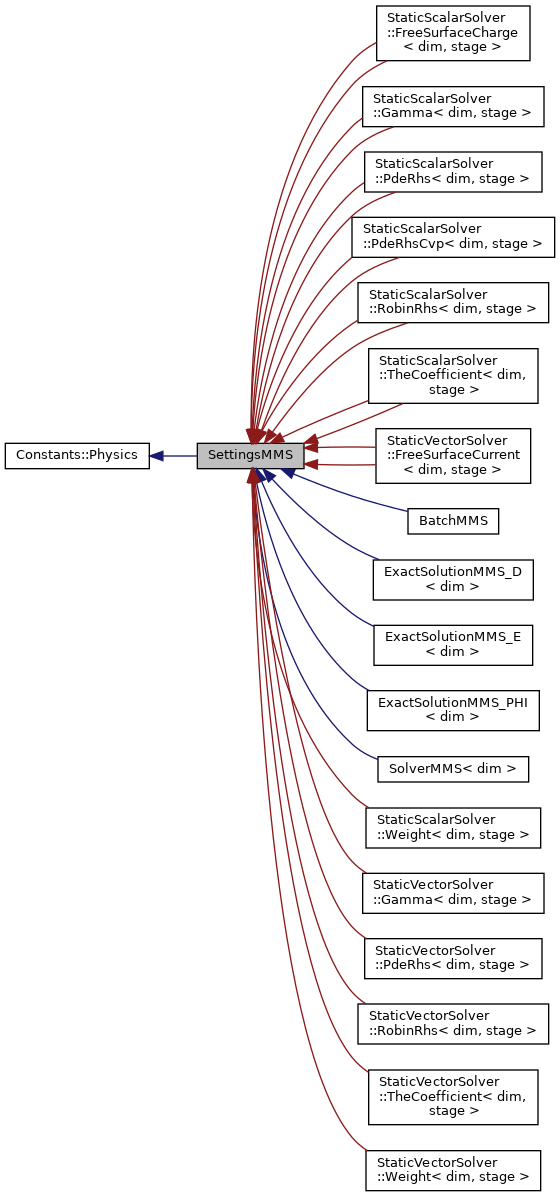

Inheritance diagram for SettingsMMS:

Collaboration diagram for SettingsMMS:

Public Attributes
const unsigned int	nr_threads_max = 0
	If greater than zero, limits the amount of threads used in the simulations.
const double	ep_0 = permittivity_fs
	The permittivity of free space.
const double	k = pi
	The scaling parameter.
const types::boundary_id	bid_dirichlet = 1
	The Dirichlet boundary condition will be applied to the boundaries with ID = 1. The boundary IDs are set in the geo files that are located in the mms/gmsh directory.
const types::boundary_id	bid_robin = 2
	The Robin boundary condition will be applied to the boundaries with even boundary IDs. This constant is not used in the code. The code applies the Robin boundary condition on all boundaries with even IDs. The boundary IDs are set in the geo files that are located in the mms/gmsh directory.
const double	eps = 1e-12
	Two values in double format are considered to be equal if the absolute value of their difference is less than eps.
const bool	print_time_tables = false
	If set to true, the program will print time tables on the screen.
const bool	project_exact_solution = false
	If set to true, the program will project the exact solution. More...
const bool	log_cg_convergence = false
	If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv. More...
Public Attributes inherited from Constants::Physics
const double	pi
	The ratio between the circumference and the diameter of any circle, \(\pi\). More...
const double	c = 299792458.0
	The speed of light in free space, \(c\).
const double	permeability_fs = 4.0 * pi * 1.0e-7
	The permeability of the free space, \(\mu_0\).
const double	permittivity_fs = 1.0 / (std::pow(c, 2) * permeability_fs)
	The permittivity of the free space, \(\epsilon_0\).

Detailed Description

Global settings for the Method of manufactured solutions (mms/) numerical experiment.

Definition at line 24 of file settings.hpp.

Member Data Documentation

log_cg_convergence

const bool SettingsMMS::log_cg_convergence = false

If set to true, saves the residual at each iteration of the CG solver. The names of the files fit the following wildcard *_cg_convergence.csv.

The residuals are saved into the subdirectories of ./ Data/ directory.

Definition at line 89 of file settings.hpp.

project_exact_solution

const bool SettingsMMS::project_exact_solution = false

If set to true, the program will project the exact solution.

The exact solution will be modeled on the same mesh and by the same finite elements that are used to model the solution. The projected exact solution will be saved in the vtk file next to the solution. This option can be useful when debugging.

Definition at line 80 of file settings.hpp.

---

The documentation for this class was generated from the following file:

• static/mms/include/settings.hpp
